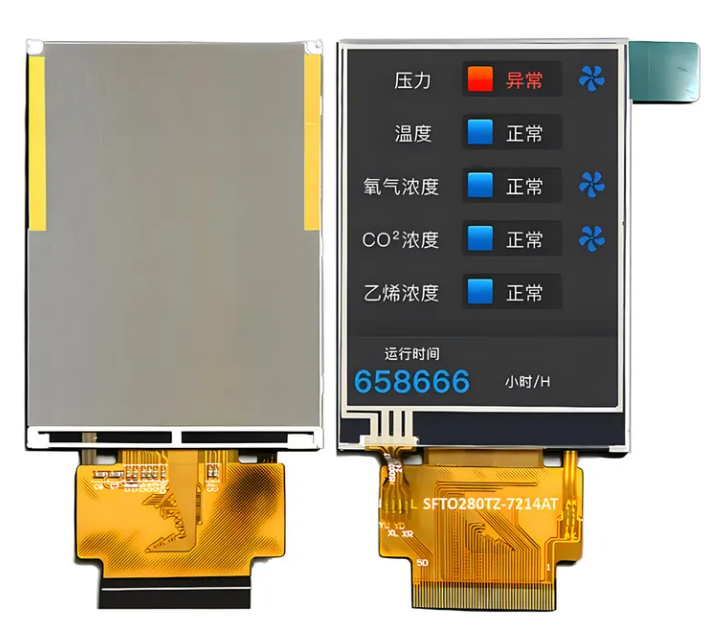

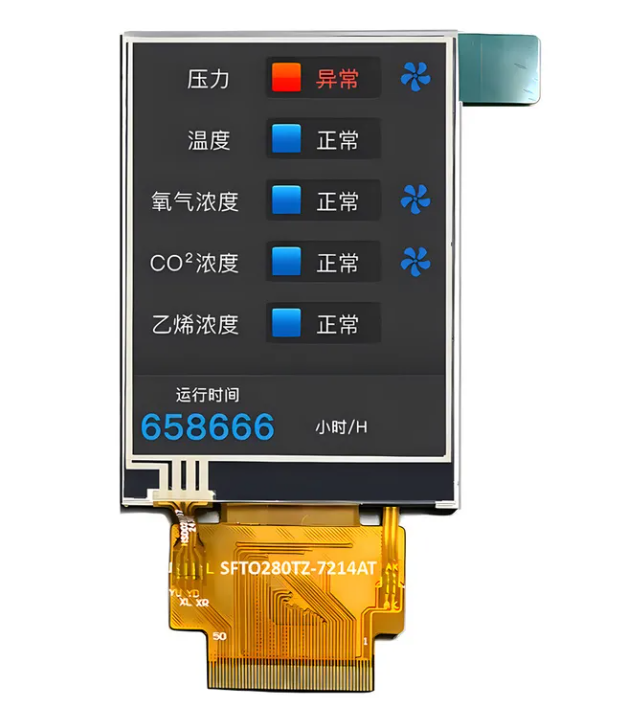

Sunlight Readable 2.8 Inch IPS TFT LCD With Resistive Touchscreen 240 X 320 Dots
High brightness daylight readable 2.8-inch IPS TFT LCD display with 240 x 320 pixel resolution and resistive touch screen, designed specifically for outdoor or bright environments.
| Product: |
2.8 Inch TFT LCD |
Resolution: |
240 X 320 |
| Color: |
262K |
Touch Screen: |
Without Resistive TP |
| Interface: |
SPI/MCU/SPI+RGB |
Viewing Direction: |
IPS, All Viewing Angles |
| Driver IC: |
ILI9341V |
Connection: |
Plugging In |
| Surface Luminance: |
1000 Cd/m²(nits) |

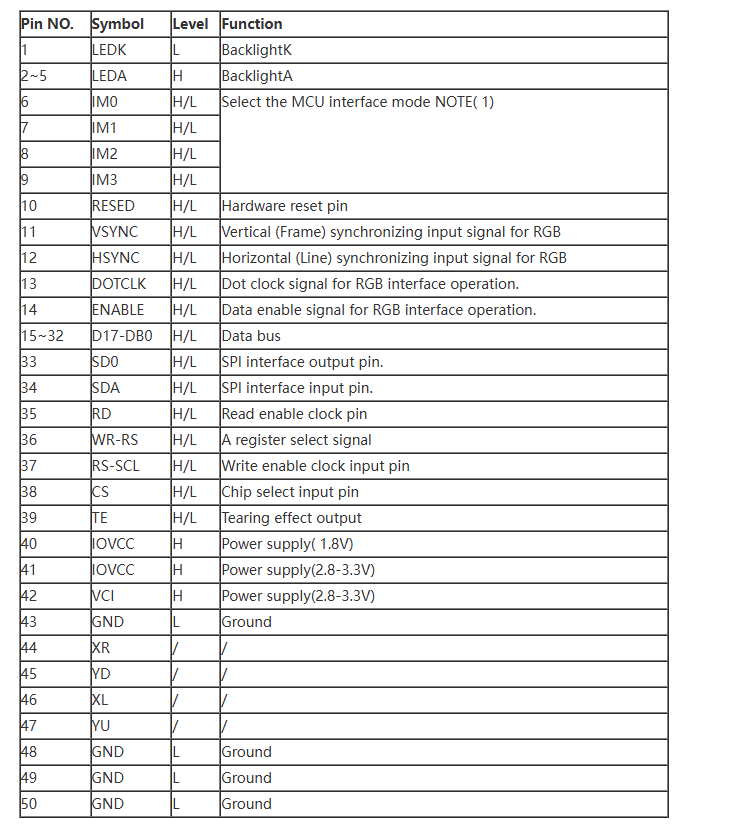

Pin Number: |
50 Pins |
| LED Lifetime: |
40,000 Hours |
Compliance: |
REACH & RoHS Compliant |
Display Screen Specifications
- Size: 2.8 inches, suitable for portable devices and applications with limited space
- Resolution: 240 x 320 pixels, providing clear image and text display
- Resistive Touch Screen: Supports single touch for basic interaction needs
- High Brightness: Backlight brightness reaches 1000 cd/m², ensuring clear readability in direct sunlight
- IPS Technology: In-Plane Switching technology provides wide viewing angles from different perspectives
- Multiple Interfaces: Compatible with SPI/MCU/SPI+RGB interfaces with plug-in FPC for stable installation
Reliable Display Specifications
- Wide Temperature Operation: Adapts to temperature range from -20°C to 70°C
- Industrial Grade Design: Durable construction and materials ensure stable operation in harsh environments
- Anti-Glare Treatment: Reduces reflection and glare under direct sunlight, improving screen readability
- Environmental Compliance: Meets RoHS and REACH standards for hazardous substance restrictions
Customized Services
Customization options available including specific interfaces, sizes, brightness, and other parameters to meet specific customer requirements.
Application Scenarios
Ideal for outdoor information handheld devices, industrial control panels, medical equipment, automotive displays, digital signage, and other applications requiring clear display under strong light conditions.
Technical Specifications
| General Information Items |
Specification |
Unit |
| Display area (AA) |
43.2(H) × 57.6(V) (2.8inch) |
mm |
| Driver element |
a-Si TFT active matrix |
- |
| Display colors |
262K |
colors |
| Number of pixels |
240(RGB) × 320 |
dots |
| Pixel pitch |
0.180(H) × 0.180(V) |
mm |
| Viewing angle |
ALL |
o'clock |
| Drive IC |
ILI9341V |
- |
| Color Pixel Arrangement |
RGB vertical stripe |
|
| Display mode |
Transmissive/ Normally Black |
- |
| Operating temperature |
-20～+70 |
℃ |
| Storage temperature |
-30～+80 |
℃ |
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification or drawing. If you don't have specifications, you can provide samples; we will recommend suitable standard products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules, if you need to modify the outline size or display content, a new LCD glass module is required. We will create new tooling for you.
This LCD display is HTN type, but I want STN type, can you make?
That's all right. We can change the type according to your request.
I want to customize a new LCD module. Can you do?
Yes, we can. Please send your drawing. If you don't have one, please provide the outline size, display information (glass thickness, polarizer, display type, connector mode, storage temp, operating temp, supply voltage, viewing direction, drive condition), and we can customize for you.
What is the lead time for tooling?
Generally, it takes 15 to 25 days after drawing confirmation and tooling charge payment. We will report the exact time when you confirm the drawing.
Can you send us samples for checking?
Yes, sample orders are available.
What is the Lead Time?
If we have stock for standard products, lead time is one day after payment. For mass production of special orders, lead time is about 15-30 days. If we can finish earlier, we will report the information in advance.
